How to Specify X, Y Coordinates for Click specified position and Similar Commands

The following commands allow you to specify positions using coordinates.

• Click specified position, Hover at specified position, Tap specified position, Drag & drop, Swipe

While we have filed the following items in our future development plans, this guide explains efficient methods for specifying X, Y coordinates under the current system.

• Want to know the designated area before execution by tapping the specified position in the test editing screen

Coordinate Specification Method

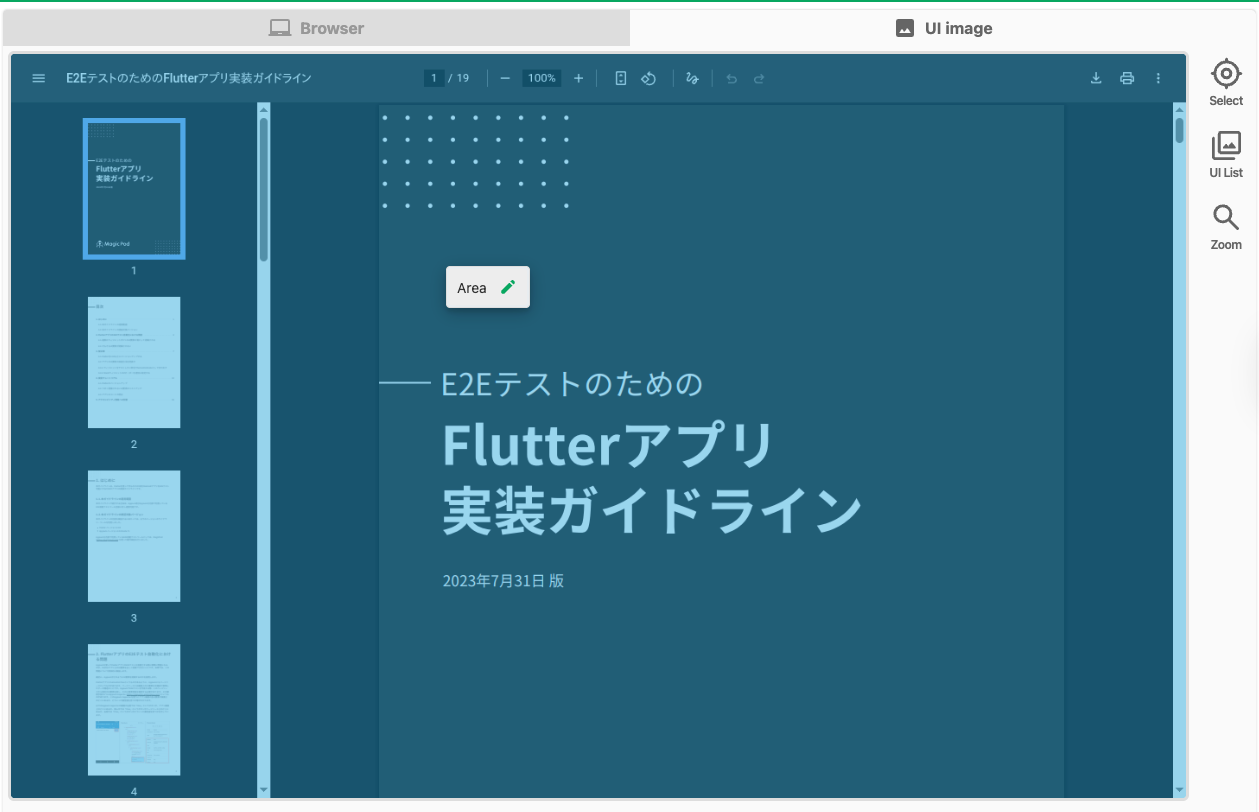

Hover your mouse over the element area where you want to specify the position by coordinates

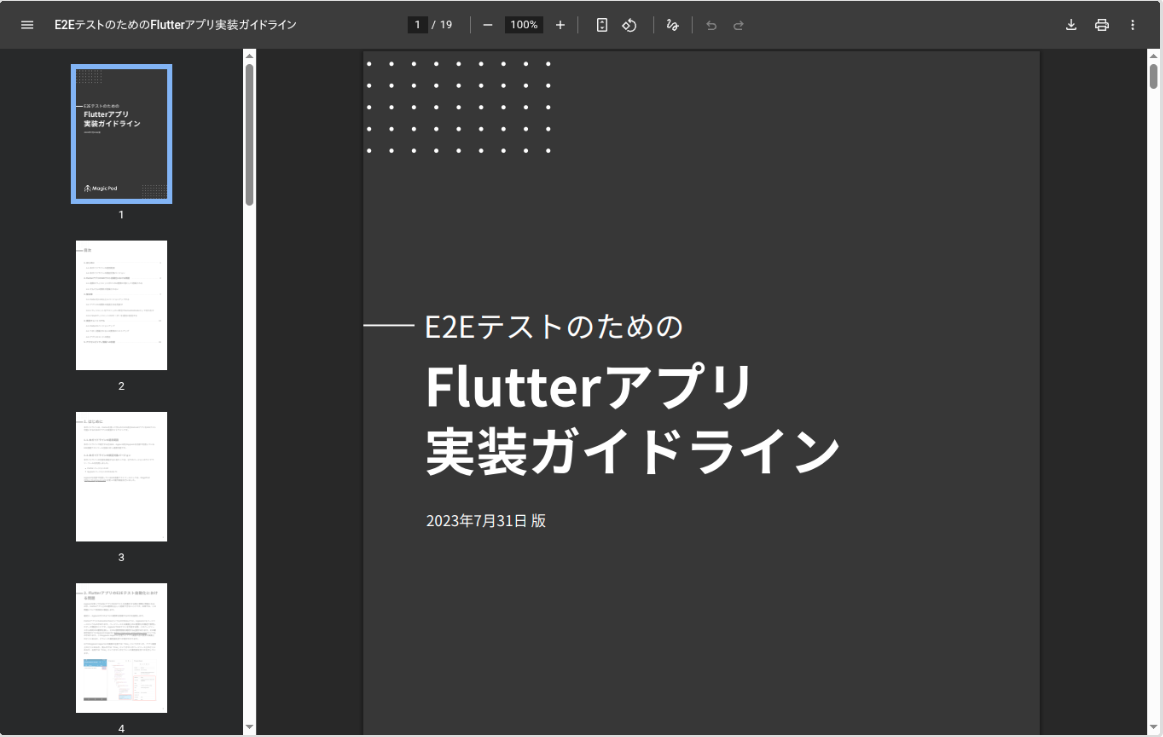

Capture a screenshot of the highlighted area using your PC's screenshot function

For Macbook: Shift + Command + 4

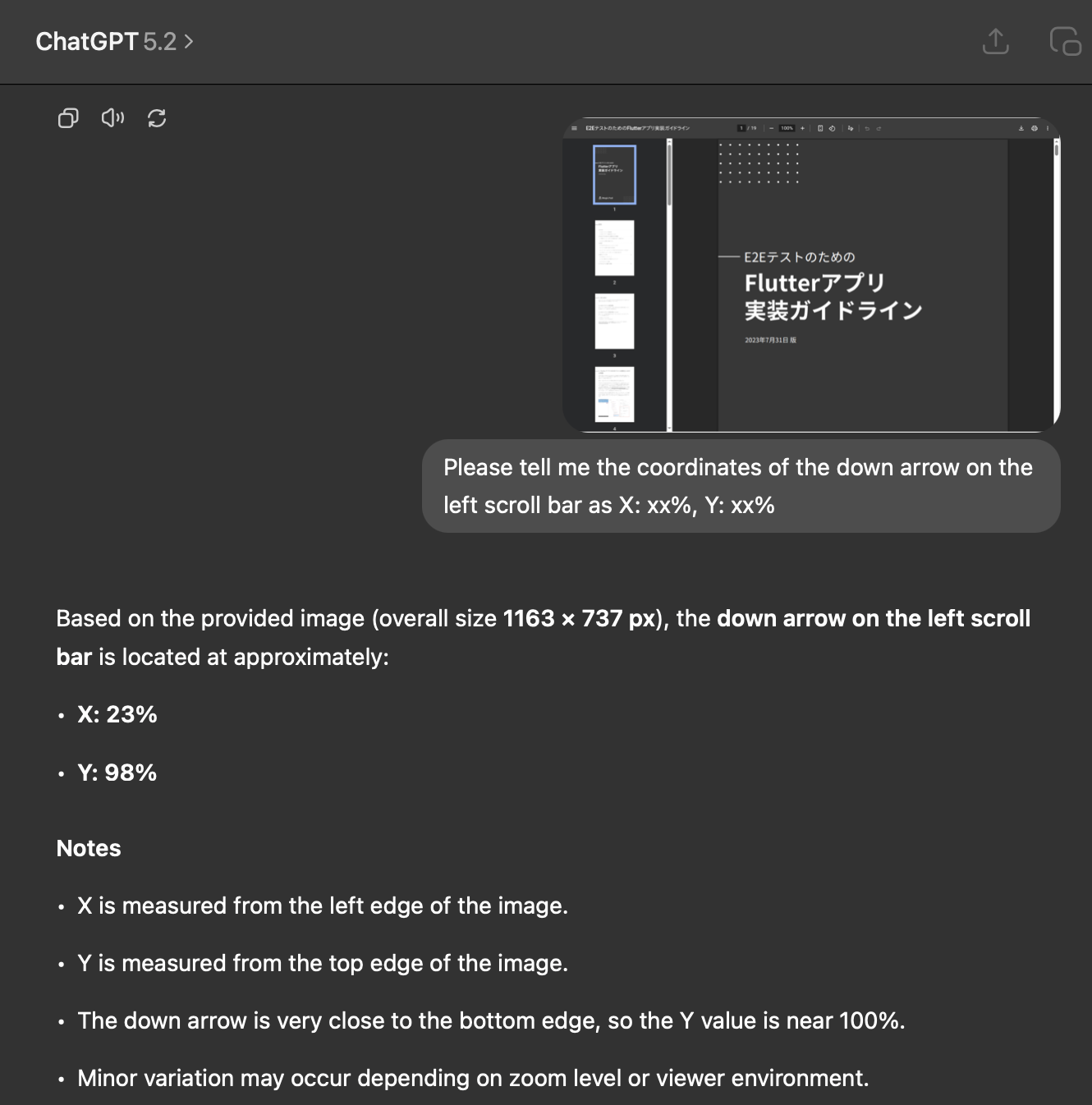

Upload the captured image to a generative AI tool such as ChatGPT or Claude, and request X, Y coordinate confirmation using the following prompt:

Please tell me the coordinates of <the location you want to obtain> as X: xx%, Y: xx%

Specify the X, Y coordinates output by the generative AI in the command, then fine-tune manually afterward

X represents the percentage from the left edge of the screen, and Y represents the percentage from the top edge of the screen.

For example, in the case of the Tap specified position command:

• When (X, Y) = (0, 0), tap the top-left corner of the element
• When (X, Y) = (50, 50), tap the center of the element
• When (X, Y) = (100, 100), tap the bottom-right corner of the element
• When (X, Y) = (95, 50), tap the right edge of the element (within the element's range)
